To ascertain the EC level of irrigation water accurately, it is imperative to assess both the water's conductivity and temperature. This is crucial because the measured conductivity is influenced by variations in water temperature. Priva addresses this challenge by employing a temperature compensation algorithm, guaranteeing precise EC level readings across a spectrum of temperatures.
Priva has provided EC sensors equipped with two distinct types of temperature sensors, both operating on the NTC (Negative Temperature Coefficient) principle. This principle dictates that the sensor's resistance decreases as the water temperature rises. In the past, Priva utilized a 1K Ω NTC sensor, resulting in a resistance measurement of 1000 ohms at 25°C (77°F). This sensor was discontinued as of February 1, 2025. Priva currently uses a 3 KΩ NTC sensor, where the resistance measures 3000 ohms at a water temperature of 25°C (77°F). Consequently, it is essential to exercise caution to guarantee the appropriate matching of the EC sensor with the corresponding EC interface. This article will help our installers determine the correct sensors and interfaces they will need.
Priva EC interfaces
The Priva EC interface boards are almost identical. To differentiate between them, one must locate the identifying sticker on the interface board. Specifically, the EC interface designed for the 3 KΩ NTC sensor bears a sticker with the text "Use with PRIVA 3K EC Sensors only. Scan for more info," accompanied by a QR code linking to this article. It's important to note that the older 1KΩ EC interface lacks this distinctive sticker.
|

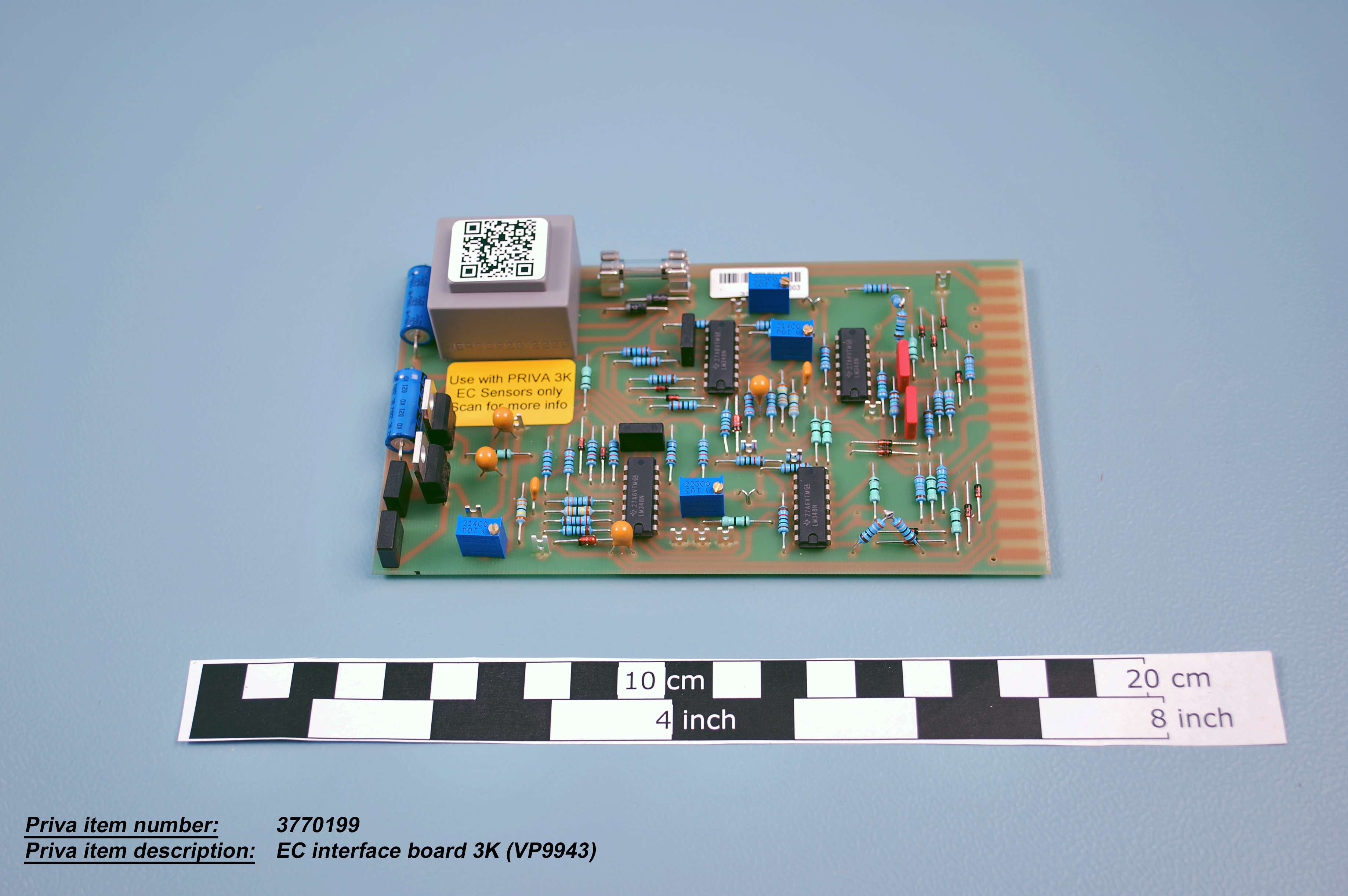

Part # 3770199
Name: EC interface board 3k (VP9943)
Notes: Priva started providing this EC interface in 2025 to be compatible with our 3K EC sensors.
|
 |
|

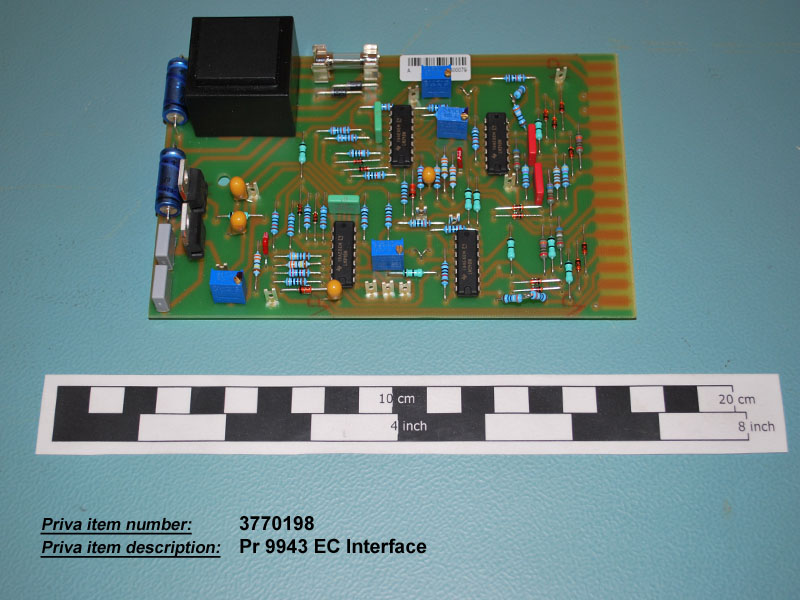

Part # 3770198
Name: EC interface board PCBA (VP9943) - 1K
Notes: **This item is no longer available**
|
 |
Determining which NTC type is on the EC sensor.
Priva provides multple types of EC sensors in different configurations. In order to determine the type of water temperature sensor on the EC sensor, it is best to check the resistance of the water temperature sensor with an ohmmeter. Since the resistance changes based on the temperature, you can use this chart to determine the type of sensor you have.
| Water temperature |
Resistance 1KΩ NTC |
Resistance 3KΩ NTC |
| 5°C (41°F). |
2540 Ω
|
7620 Ω
|
| 10°C (50°F). |
1991 Ω
|
5973 Ω
|
| 15°C (59°F). |
1572 Ω
|
4716 Ω
|
| 20°C (68°F). |
1249 Ω
|
3747 Ω
|
| 25°C (77°F). |
1000 Ω
|
3000 Ω
|
| 30°C (86°F). |
806 Ω
|
2417 Ω
|
EC Sensor types and replacement parts
To assist in identifying the various sensors, here is a description of the different types of sensors Priva provides.
|
|

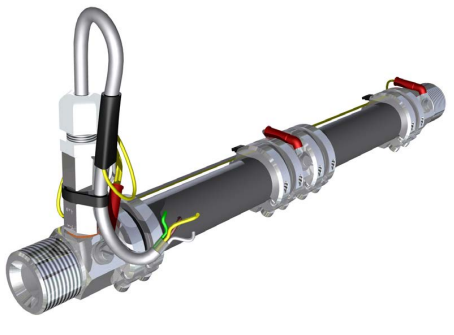

In-line EC Sensor
This EC sensor can be identified by it's length. It is 334 mm (13 inches) long. There are three different variants in the field.
-

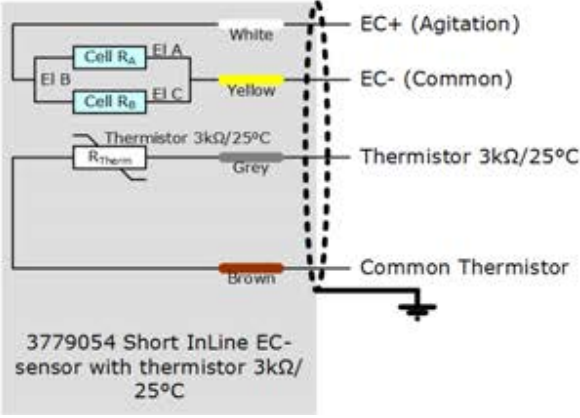

3779054 - This sensor has a 3KΩ NTC water temperature sensor. The water temperature sensor is connected to a grey and a brown wire.
-

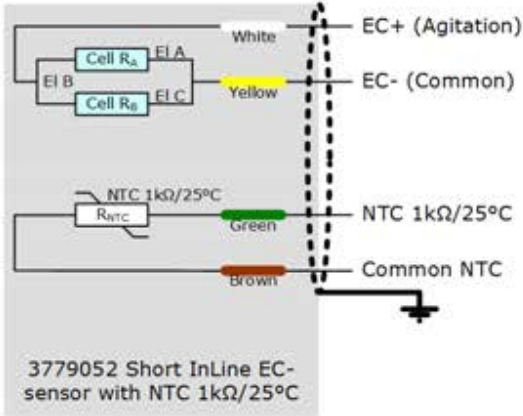

3779052 - This sensor has a 1KΩ NTC water temperature sensor. The water temperature sensor is connected to a grey and a brown wire.**This item is no longer available**
-

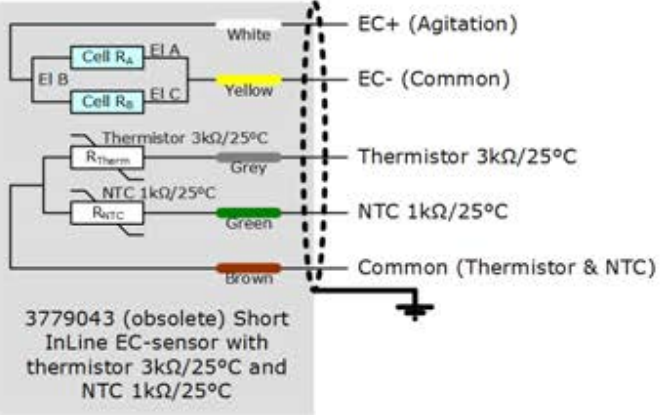

3779043 - This sensor has both a 1KΩ NTC and a 3KΩ NTC water temperature sensor. The 1KΩ NTC water temperature sensor is connected to a green and a brown wire and the 3 KΩ NTC is connected to a grey and a brown wire.**This item is no longer available**
|
 |
In-line EC Sensor 3 KΩ NTC replacement
Part # 3476070
This is the replacement sensor for the 3KΩ NTC water temperature sensor on the In-line EC sensor.
|
 |

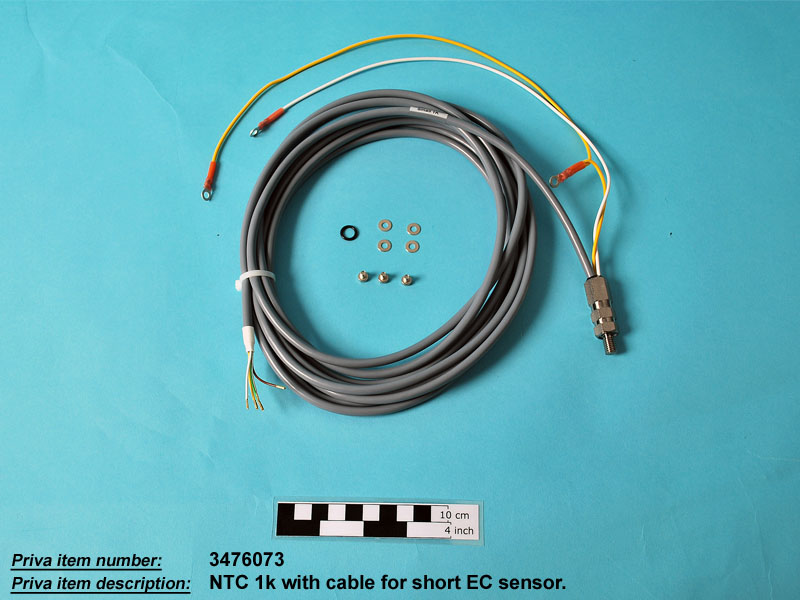

In-line EC Sensor 1 KΩ NTC replacement
Part # 3476073
This is the replacement sensor for the 1KΩ NTC water temperature sensor on the In-line EC sensor. **This item is no longer available**
|
|
|
Angled EC Sensor
This EC sensor is 540 mm (21.25 inches) long. There are three different variants in the field.
-

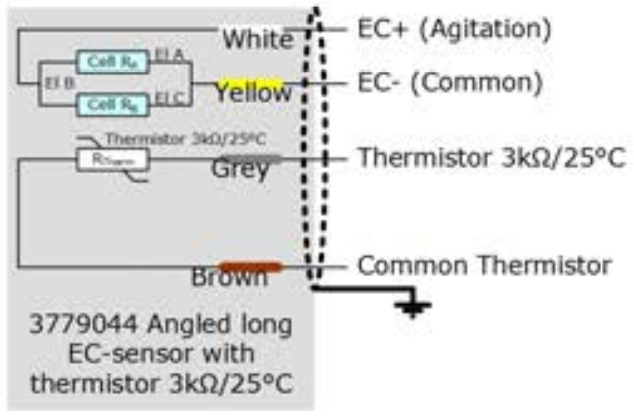

3779044 - This sensor has a 3KΩ NTC water temperature sensor. The water temperature sensor is connected to a grey and a brown wire.
-
3779041 - This sensor has a 1KΩ NTC water temperature sensor. The water temperature sensor is connected to a grey and a brown wire. **This item is no longer available**
-

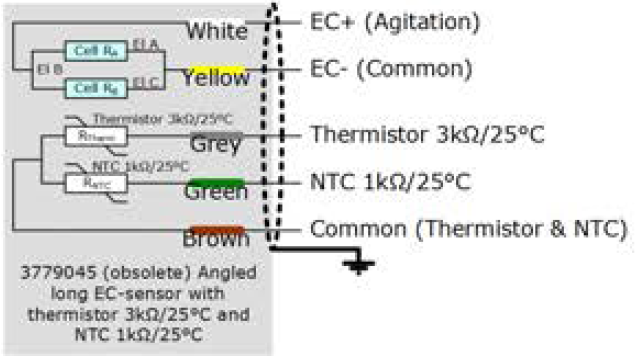

3779045 - This sensor has both a 1KΩ NTC and a 3KΩ NTC water temperature sensor. The 1KΩ NTC water temperature sensor is connected to a green and a brown wire and the 3 KΩ NTC is connected to a grey and a brown wire. **This item is no longer available**
|
 |

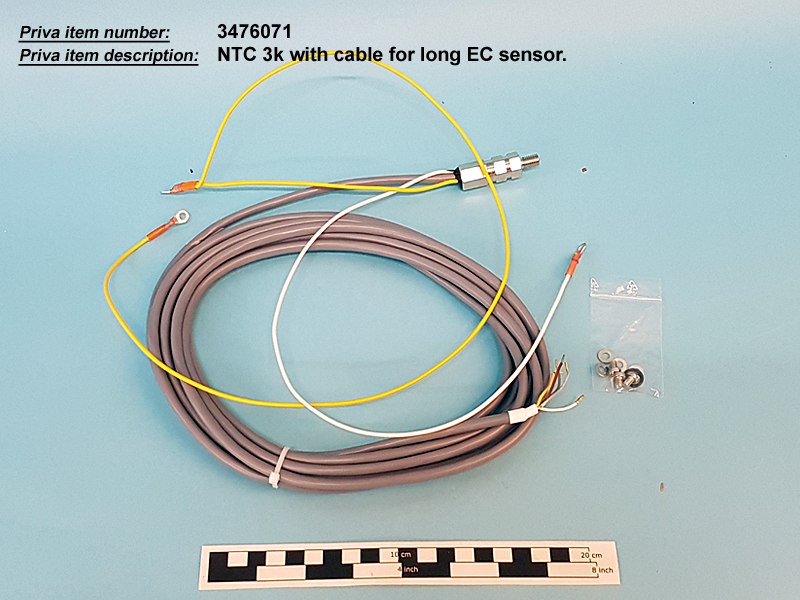

Angled EC Sensor 3 KΩ NTC replacement
Part # 3476071
This is the replacement sensor for the 3KΩ NTC water temperature sensor on the Angled EC sensor.
|
 |

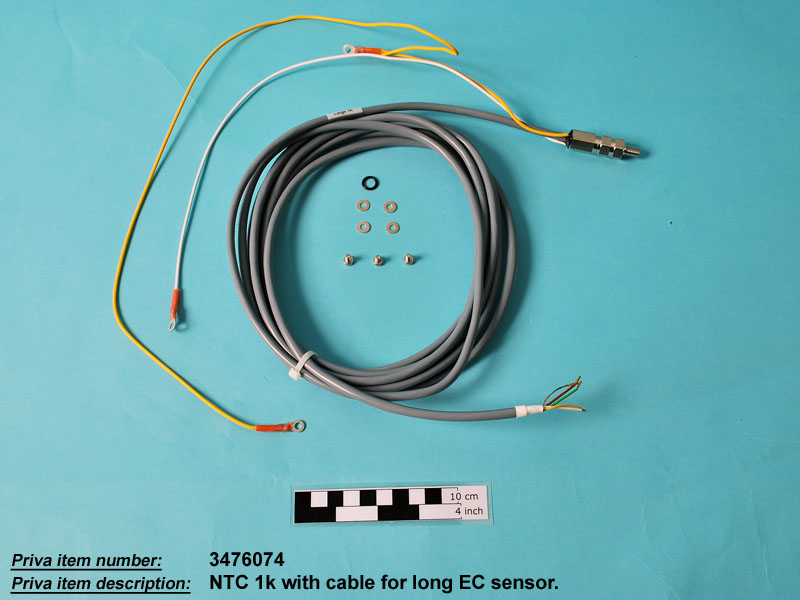

Angled EC Sensor 1 KΩ NTC replacement
Part # 3476074
This is the replacement sensor for the 1KΩ NTC water temperature sensor on the Angled EC sensor.**This item is no longer available**
|
|

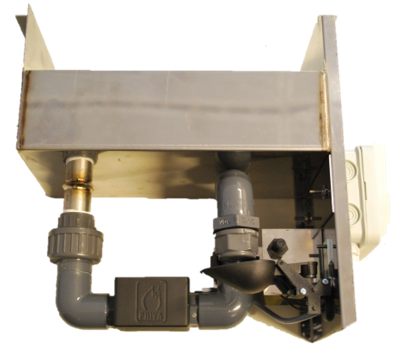

Drain water sensor
The drain water sensor is designed to be mounted at the end of a drain tray. There are two different variants in the field.
-
3779222 - This sensor has a 3KΩ NTC water temperature sensor. **This item is no longer available**
-
3779220 - This sensor has a 1KΩ NTC water temperature sensor. **This item is no longer available**
|
 |

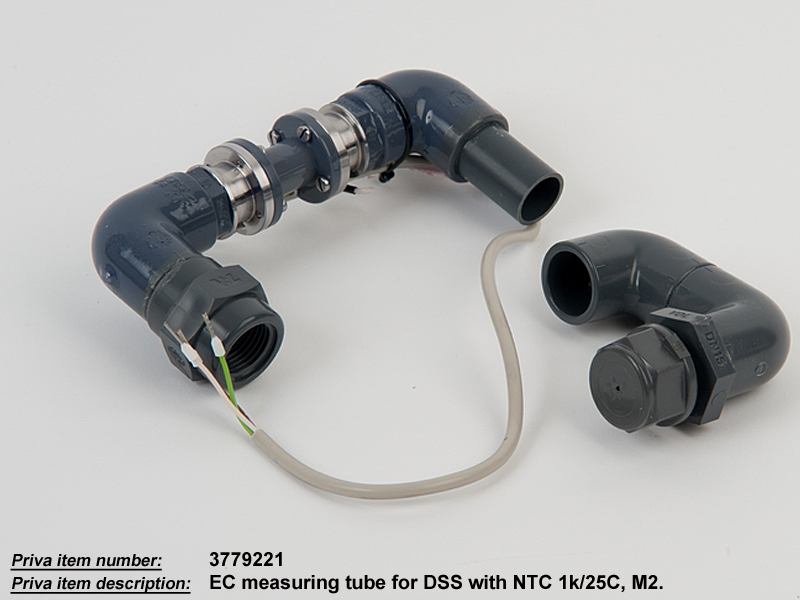

Drain EC Sensor 1 KΩ NTC replacement
Part # 3779221
This is the replacement sensor for the 1KΩ NTC water temperature sensor on the Drain water sensor.**This item is no longer available**
|
 |
Drain EC Sensor 3 KΩ NTC replacement
Part # 3779223
This is the replacement sensor for the 3KΩ NTC water temperature sensor on the Drain water sensor. .**This item is no longer available**
|
|
|
Drain water sensor with enclosed EC sensor
The drain water sensor is designed to be mounted at the end of a drain tray. There are two different variants in the field.
-
3779225 - This sensor has a 3KΩ NTC water temperature sensor.
-
3779224 - This sensor has a 1KΩ NTC water temperature sensor. **This item is no longer available**
|
 |

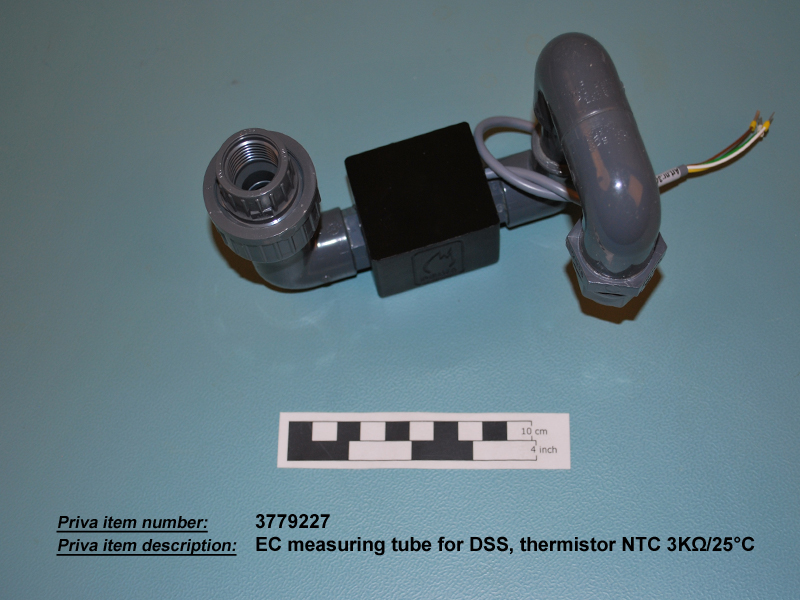

Drain EC Sensor with enclosed 3 KΩ NTC EC sensor replacement
Part # 3779227
This is the replacement drain assembly for the 3779220 / 3779222 with a EC sensor including the 3KΩ NTC water temperature sensor.
|
 |

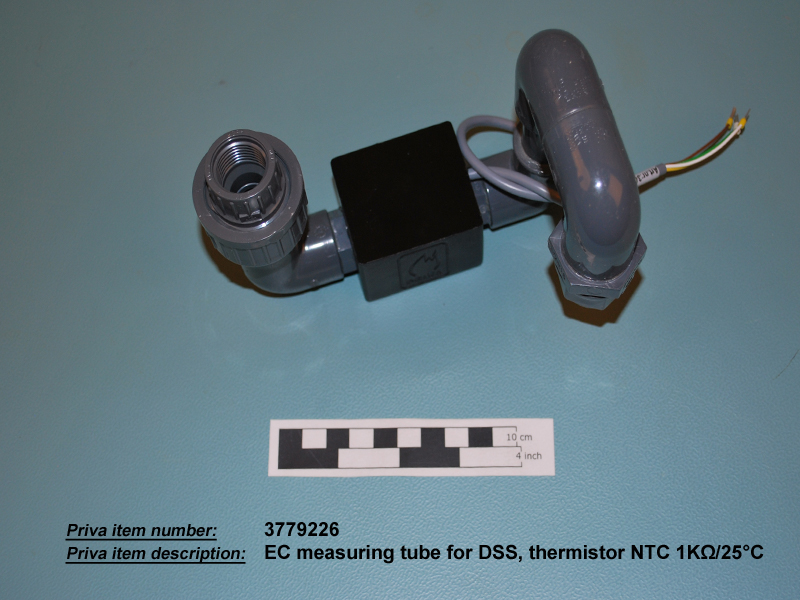

Drain EC Sensor with enclosed 1 KΩ NTC EC sensor replacement
Part # 3779226
This is the replacement drain assembly for the 3779220 / 3779222 with a EC sensor including the 1KΩ NTC water temperature sensor.**This item is no longer available**
|
 |

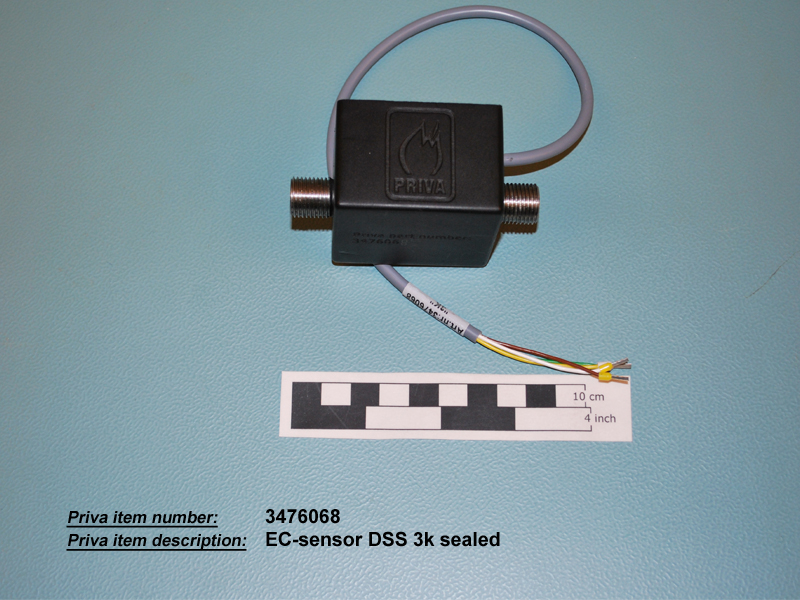

DSS EC Sensor 3KΩ NTC EC sensor
Part # 3476068
This is the replacement sensor for the 3KΩ NTC water temperature sensor on the Drain water sensor..**This item is no longer available**
|
 |

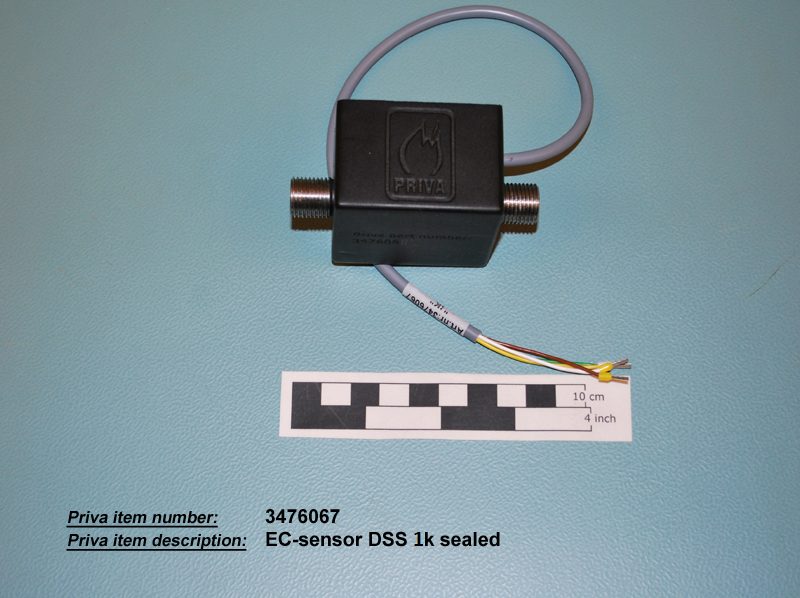

DSS EC Sensor 1KΩ NTC EC sensor
Part # 3476067
This is the replacement sensor for the 1KΩ NTC water temperature sensor on the Drain water sensor.**This item is no longer available**
|
See also:What is EC and why is it important?
