There is a new type of chart available for growers who are keen to stay on top of their daily achieved ratio of temperature to radiation (RTR): the scatter plot. The RTR scatter plot is available as a chart template.

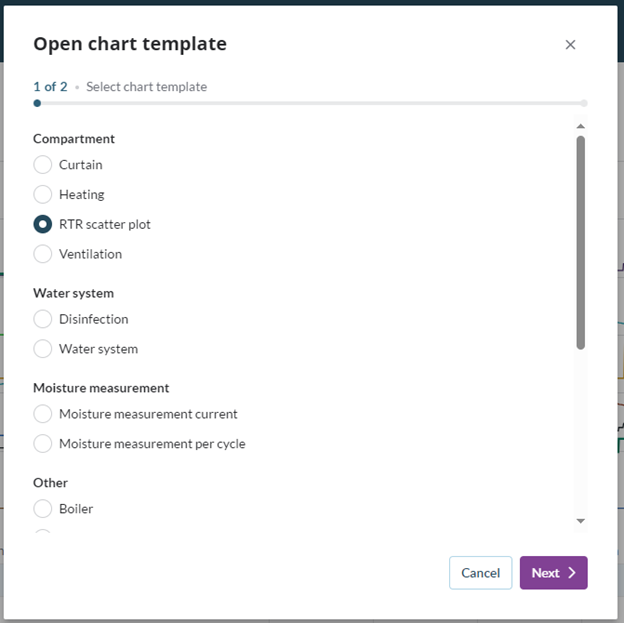

That means that you can find it by selecting ‘Add chart’ from a page or a dashboard and selecting the option ‘Chart template’. Pick ‘RTR scatter plot’ from the list of templates:
In the next step, select the 24-hour temperature method you are using in your 24-hour temperature settings:

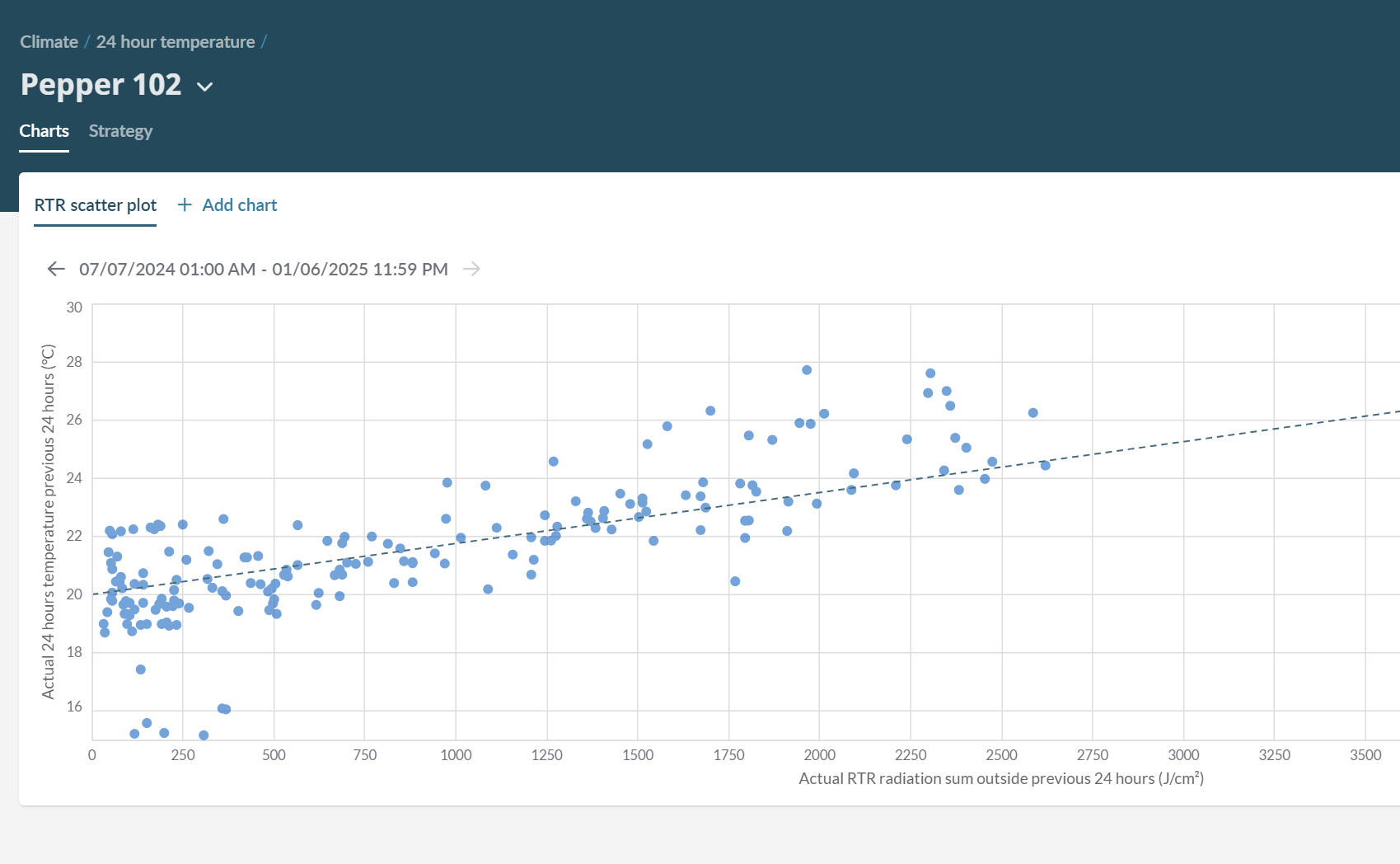

The result is a scatter plot chart in which every daily RTR value is represented as a dot.
In the chart, a target line is also present that takes its values from the 24-hour temperature strategy. If you have made adjustments to this strategy over time, the chart will take that into account and adjust the target line based on the most recent day in your selected chart date range.
For example: if you set your date range from 1st of October to 14th of October, the targets of base temperature and set RTR of 14th of October will be displayed as a target line (the dashed line in the image below).
Please note that if you don't have a 24-hour temperature strategy set up, a target line will not display.
This feature is available for all users with Connext version 915.00.0 and higher.
