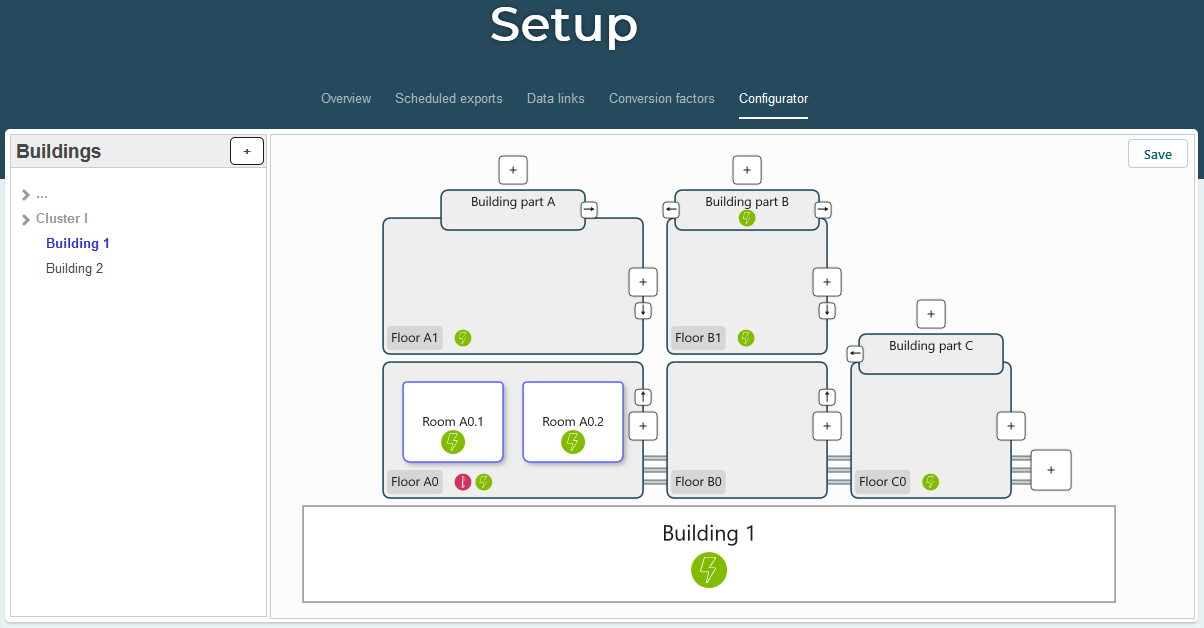

In the Configurator you create schematic representations of your buildings and you define for each building part which data you want to be displayed in the Monitor.
The schematic representations consist of five levels: Clusters > Buildings > Building parts > Floors > Rooms. For each level you have the option to link data points by adding a connection. A connection means that the chosen data will be shown in charts and tables in the Monitor.
Totals
Meters can have different reporting levels: submeter, total, or part of total.
A submeter is only visible in the monitoring within its own building section.
A total meter is visible within its own building section and within the higher-level building sections, provided no total meter is present there.
A part-of-total meter is visible within the building section and within the higher-level building sections, provided no total meter is present there.
If multiple part-of-total meters are installed in the same building section, a total measurement is automatically generated by adding them together.
If a total meter is also installed, a residual consumption measurement is always generated by subtracting the total of the part-of-total meters from the total measurement.
